Self-assembly
Construction of the fence
If you are going to build your vinyl fence yourself, please follow the instructions below:
Measure your enclosure
- You have to start from the corners of the fence
- Measure the places where you want to have the gates installed
- Then measure the individual fields
Drilling holes
- In the case of good terrain, you can do it with a manual soil drill
- If the terrain is more difficult, you will need a more powerful hydraulic drill
- The depth of the hole is at least 60 cm
- The diameter of the hole is at least 25 cm
- To maintain accuracy, we recommend drilling a maximum of 5 holes at a time and carrying out the setting of the columns and their concreting - only then continue drilling the holes

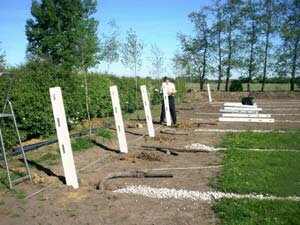

Installation of columns
- Insert the post into the hole
- Level the column with a spirit level
- Pour concrete around the post
- Pour concrete inside the column as well, but no more than 10 cm above the ground
- Proceed with the next column after measuring the central distance of 240 cm (crossbars are 239.5 cm long)
Stringing of partitions
- We recommend always threading one upper partition during concreting of individual columns
- Install the remaining partitions only after the columns have been completely installed and concreted
- If the size of the enclosure requires it, the partitions must be cut to the required length
- If the size of the last field of the enclosure is wrong, we recommend measuring it into several fields
Insertion of caps
- Apply translucent silicone to the inside of the cap
- Fit the cap
Installation of gate columns, including installation of roxors and their concreting
- Insert the post into the drilled hole
- Cover it with concrete from the outside
- Align the column
- Install 2 x Roxor rods with a diameter of 12 mm inside the column so that there is a distance of at least 5 cm between them
- Concrete the inside of the column up to the top of the column
- Measure the second column and repeat the procedure
- Let the columns rot for at least 48 hours before installing the gates
